No. 1 Engine Mount, No. 4 Engine Mount Installation Note

Install the No. 4 engine mount bracket to the transaxle case.

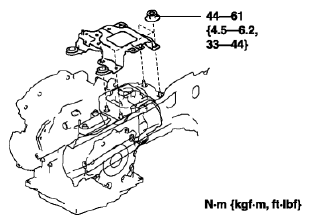

Fig 1: No. 4 Engine Mount Bracket And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the No. 1 engine mount bracket to the converter housing.

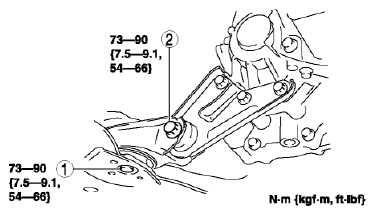

Fig 2: No. 1 Engine Mount Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the No. 1 engine mount rubber and temporarily tighten the bolts shown below.

Fig 3: Identifying No. 1 Engine Mount Rubber Bolts
Courtesy of MAZDA MOTORS CORP.

Bolt length
- Front crossmember side: approx. 62 mm {2.4 in}
- No. 1 engine mount bracket side: approx. 65 mm {2.6 in}
Insert the No. 4 engine mount rubber into the stud bolt of the body and tighten the bolt shown below.

Fig 4: No. 4 Engine Mount Rubber Stud Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Completely tighten the No. 1 engine mount rubber bolts in the order shown below.

Fig 5: No. 1 Engine Mount Rubber Bolts Tightening Sequence With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Insert the battery tray bracket into the stud bolt of the body from the upper side of the No. 4 engine mount rubber, and tighten the nuts.

Fig 6: No. 4 Engine Mount Rubber And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the SST (49 C017 5A0) .
