Oil Pump Sprocket Removal/Installation Note

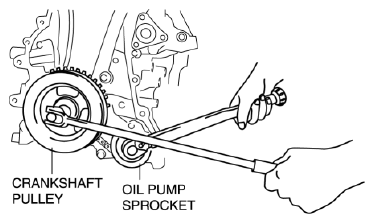

- Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown below.
- Remove/install the oil pump sprocket, and then remove the crankshaft pulley and crankshaft pulley lock bolt.
Tightening torque
- 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}
