Cap Installation Note

CAUTION:
  • After installing the cap, verify that there is no gap between the upper part of the cap and the bottom surface of the washer tank. Otherwise, water leakage could occur.

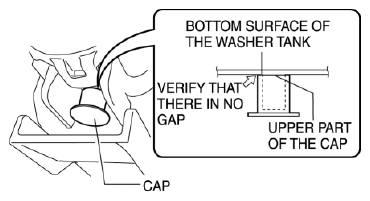

Fig 1: Inspecting Gap Between Upper Part Of Cap And Bottom Surface Of Washer Tank
G08153393Courtesy of MAZDA MOTORS CORP.
