Joint Hose Installation Note

  1. Install the joint hose as shown below.

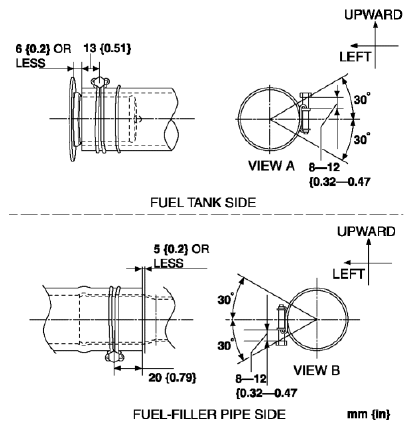

    Fig 1: Installing Joint Hose
    G08150171Courtesy of MAZDA MOTORS CORP.
