Primary Shaft Components Disassembly: Notes

  1. Disassemble in the order indicated in the table.

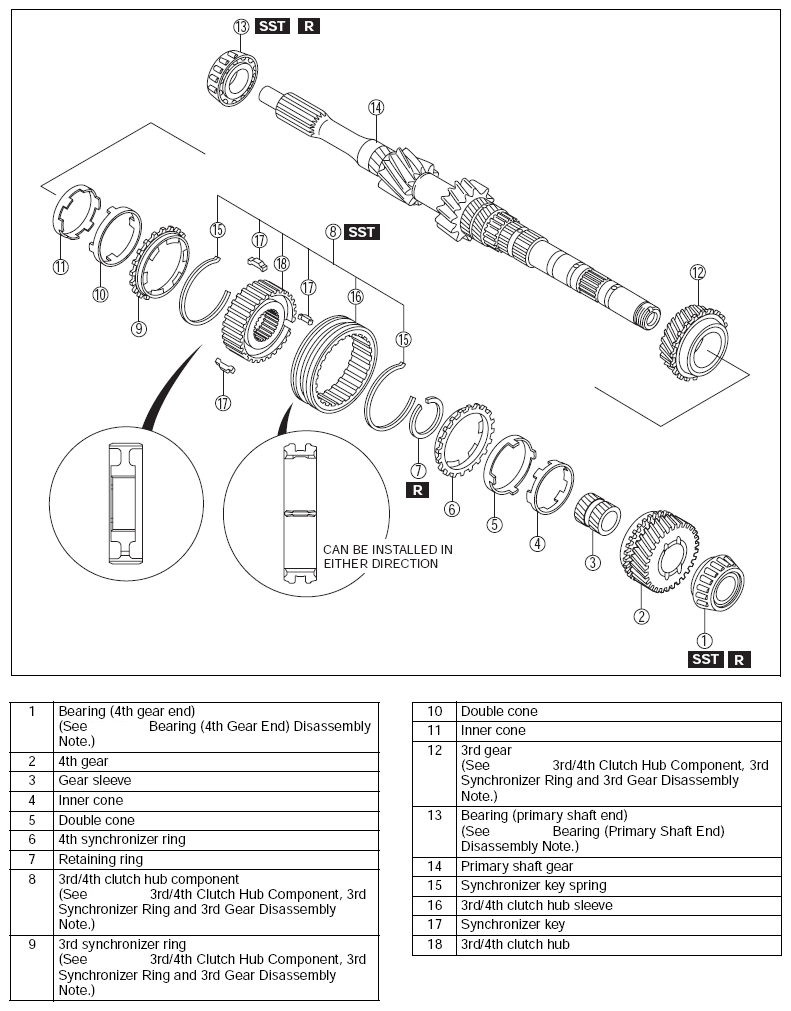

    Fig 1: Identifying Primary Shaft Components
    G08803694
