Battery Clamp Installation Note

  1. Assemble the battery clamp so that the arrow on it is pointed toward the front of the vehicle.

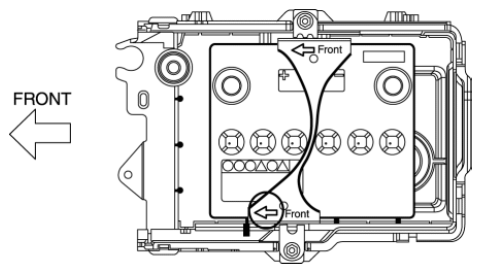

    Fig 1: Battery Clamp
    G08150255Courtesy of MAZDA MOTORS CORP.
