Wiper And Washer Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the wiper and washer switch connector.

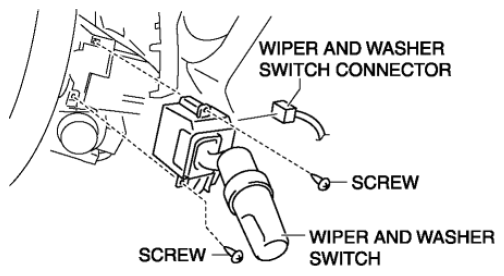

    Fig 1: Identifying Wiper And Washer Switch, Connector And Screws
    G08153420Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the wiper and washer switch.
  6. Install in the reverse order of removal.
