Windshield Wiper Arm And Wiper Blade Removal/Installation: Notes

  1. Remove in the order indicated in the table.

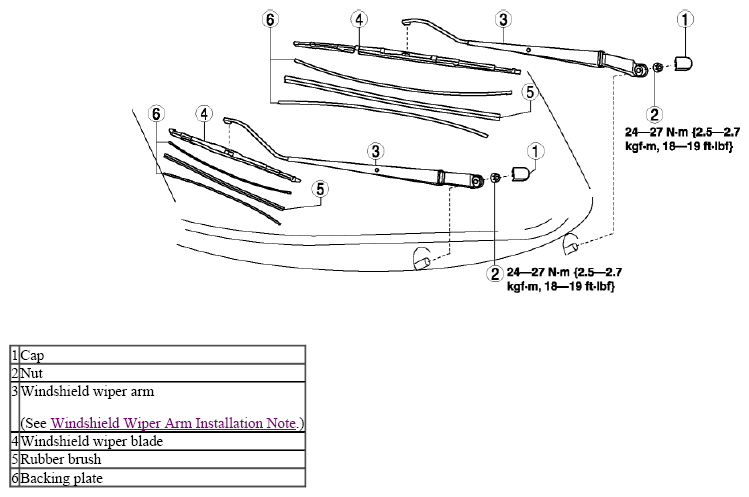

    Fig 1: Windshield Wiper Arm And Blade With Torque Specifications
    G08153381Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)
