Washer Motor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

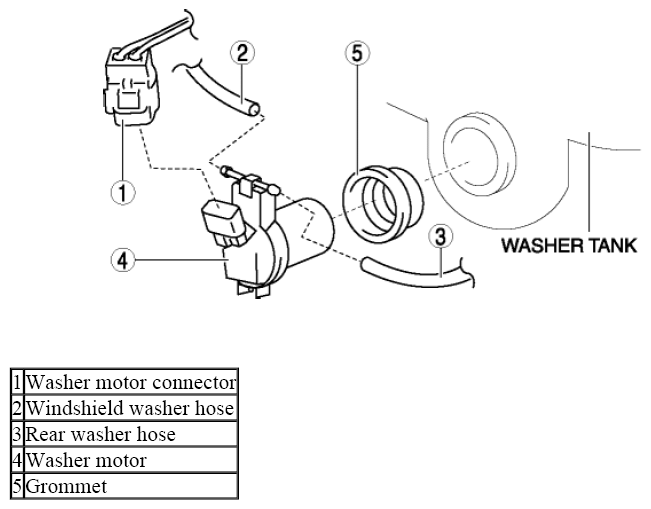

    Fig 1: Identifying Washer Motor Component Removal Order
    G08153394Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
