Rear Wiper Arm And Blade Removal/Installation: Notes

  1. Remove in the order indicated in the table.

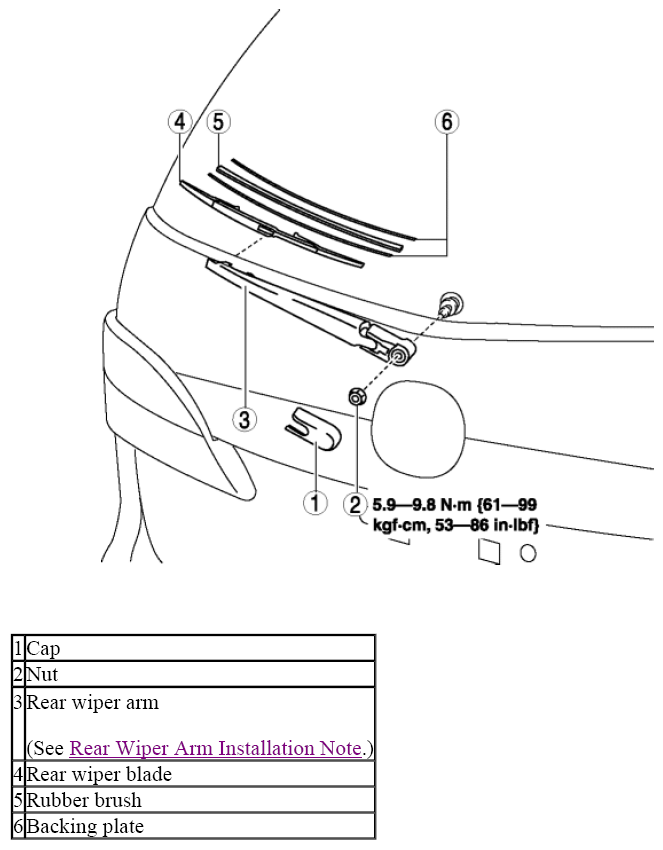

    Fig 1: Rear Wiper Arm And Blade With Torque Specifications
    G08153397Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
