Pattern 1

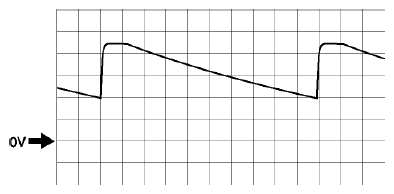

Fig 1: Generated Pulse (Reference) Graph - Pattern 1

G08153620

Courtesy of MAZDA MOTORS CORP.

Terminal:
- Hood latch switch signal: 1J (+) ↔ body ground (-)
- Sliding door switch (LH) signal: 6E (+) ↔ body ground (-)
- Lock input (Driver-side front door lock-link switch): 6I (+) ↔ body ground (-)
- Lock/unlock input (passenger-side front door lock-link switch) (sliding door lock link switch (RH, LH)): 6J (+) ↔ body ground (-)
- Sliding door switch (RH) signal: 6K (+) ↔ body ground (-)
- Unlock input (Driver-side front door lock-link switch): 6L (+) ↔ body ground (-)
Oscilloscope setting: 1 V/DIV (Y), 1 ms/DIV (X), DC range
