| DETECTION CONDITION |
- Under the following condition, TR switch voltage is 0.49 V or less for 5 s
- Battery positive voltage is 9 V or more
Diagnostic support note
- The check engine light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The automatic transaxle warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits 1GR, 4GR and 5GR
- Inhibits feedback control
|

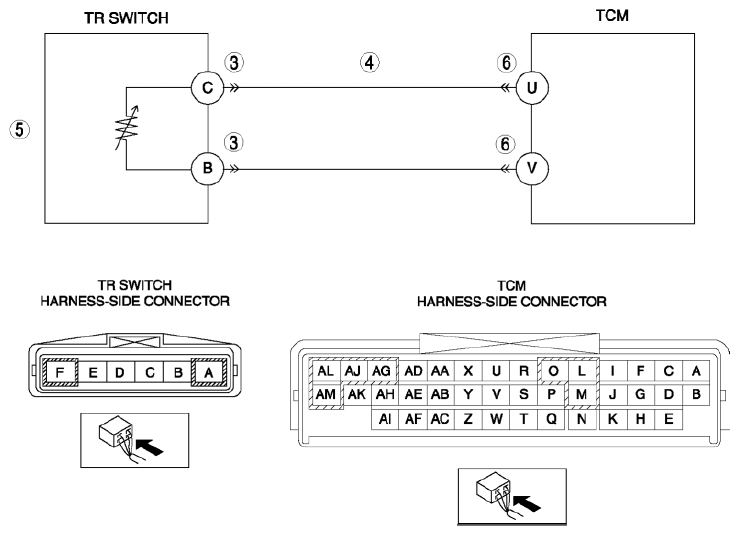

| POSSIBLE CAUSE |
- TR switch connector or terminal malfunction
- Short to GND in wiring harness between TR switch terminal C and TCM terminal U
- TR switch malfunction
- TCM connector or terminal malfunction
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
