Procedures
>>
General Information
>>
Electrical System
>>
Connectors
>>
Disconnecting Connectors
Disconnecting Connectors
When disconnecting a connector, grasp the connectors, not the wires.

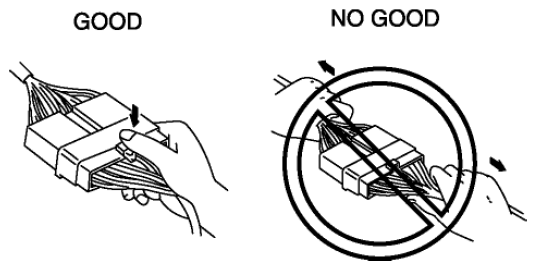

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.

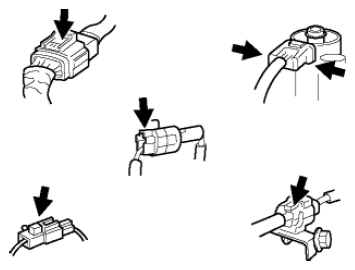

Fig 2: Locating Connectors Lock Lever
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
