Adhesive Polyurethane (3) Assembly Note

  1. Wrap the low-pressure side of the evaporator pipe with insulator.

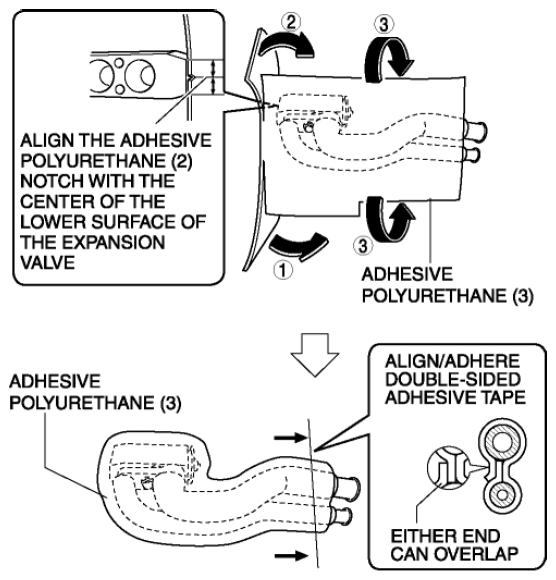

    Fig 1: Wrapping Low-Pressure Side Of Evaporator Pipe With Insulator
    G08150897Courtesy of MAZDA MOTORS CORP.
