No. 1 Blown Fuses

1	BLOWN FUSES

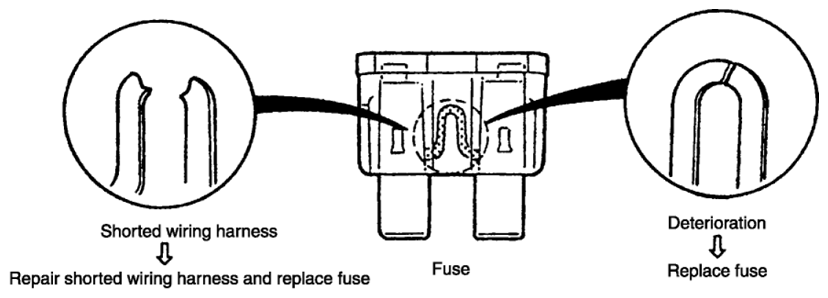

[TROUBLESHOOTING HINTS] Inspect condition of fuse.
Courtesy of MAZDA MOTORS CORP.
Damaged Fuse	Related Wiring Harness
EGI MAIN	EGI MAIN fuse Main relay
ENG INJ	ENG INJ fuse PCM
ENG BAR	ENG BAR fuse MAF/IAT sensor EGR valve Purge solenoid valve Variable tumble solenoid valve Variable intake air solenoid valve A/F sensor CV solenoid valve
ROOM	ROOM fuse DLC-2
FAN1	FAN1 fuse Cooling fan motor No. 1
AD FAN	AD FAN fuse Cooling fan relay No. 3
ENG +B	ENG +B fuse Cooling fan relay No. 2 Cooling fan relay No. 3 PCM
ENG2	ENG2 fuse Fuel pump relay HO2S PCM
ENG3	ENG3 fuse Ignition coil No. 1 Ignition coil No. 2 Ignition coil No. 3 Ignition coil No. 4
FUEL PUMP	FUEL PUMP fuse Fuel pump relay
MAIN ST	MAIN ST fuse Generator Starter
STARTER	STARTER fuse Starter relay Generator
IG KEY2	IG KEY2 fuse Starter relay
