Sliding Door Quarter Glass Removal/Installation

Fully open the sliding door glass.
Disconnect the negative battery cable.
Remove the following parts:
1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
Remove the bolt.

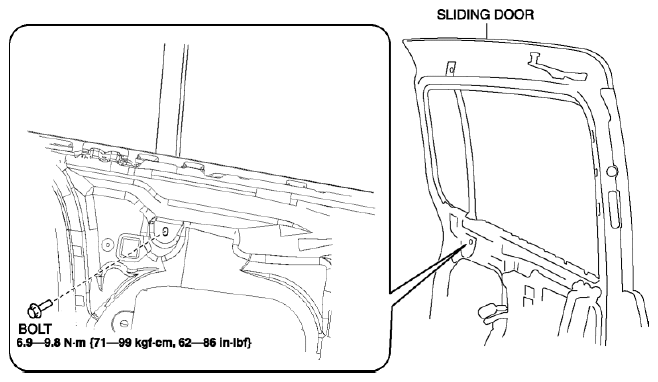

Fig 1: Sliding Door And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the screw.

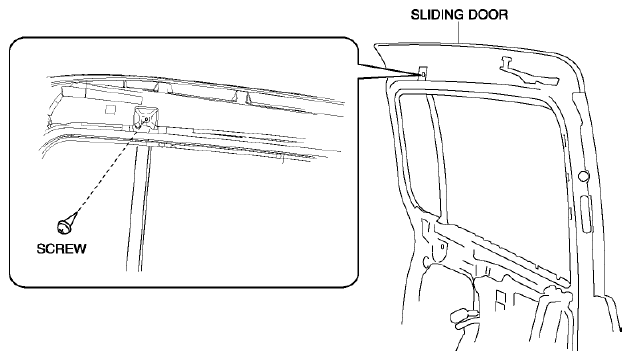

Fig 2: Sliding Door And Screw With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the sliding door glass guide and glass run channel as a single unit.

Fig 3: Removing Sliding Door Glass Guide And Glass Run Channel As A Single Unit
Courtesy of MAZDA MOTORS CORP.
Tilt the sliding door quarter glass in the direction of arrow (1) shown below and remove it in the direction of arrow (2).

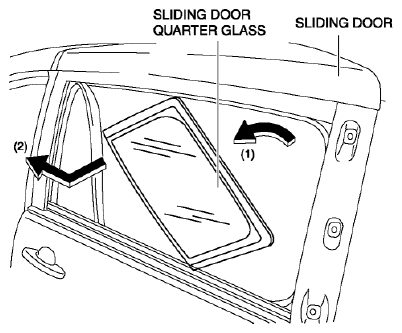

Fig 4: Tilting Sliding Door Quarter Glass
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
