Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.
  2. Press area A of the outer mirror glass shown below so that area B moves outward.

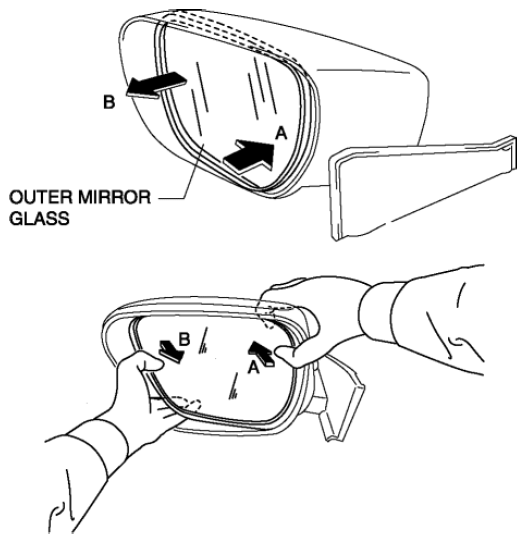

    Fig 1: Pressing Area A Of Outer Mirror Glass
    G08152882Courtesy of MAZDA MOTORS CORP.
  3. Detach pin A while lifting up the inside of the outer mirror glass.

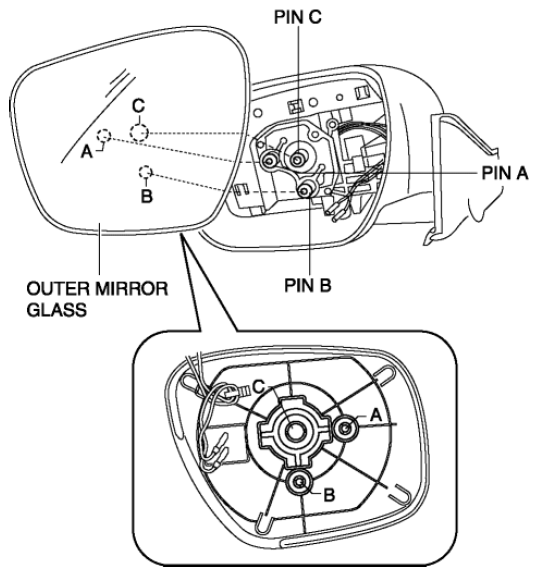

    Fig 2: Identifying Outer Mirror Glass And Pins A, B And C
    G08152883Courtesy of MAZDA MOTORS CORP.
  4. Pull the outer mirror glass and remove pins B and C.
  5. Disconnect the heated outer mirror connector (vehicles with heated outer mirror).

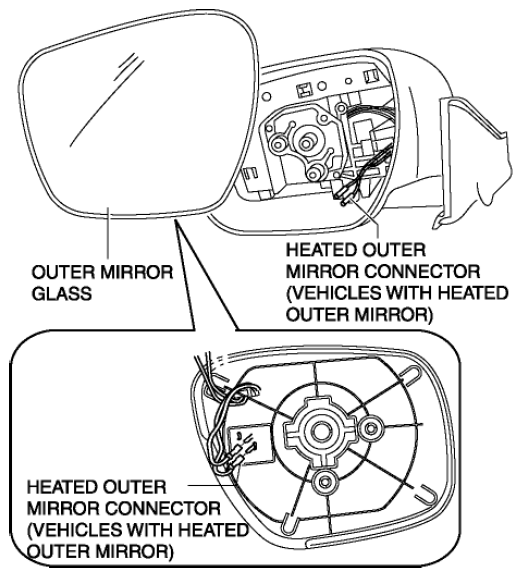

    Fig 3: Identifying Heated Outer Mirror Connector And Outer Mirror Glass
    G08152884Courtesy of MAZDA MOTORS CORP.
  6. Remove the outer mirror glass.
