Part-Side Connector

• The viewing orientation for part-side connectors is from the terminal side.

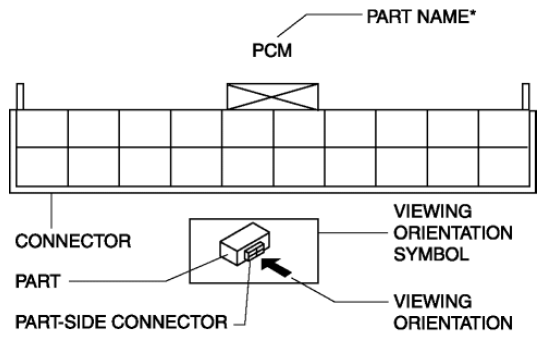

  Fig 1: Identifying Part-Side Connector

  Courtesy of MAZDA MOTORS CORP.

*Part names are shown only when there are multiple connector drawings.
