EPS CM Removal Note

  1. Disconnect the torque sensor connector (EPS CM side).
  2. Remove the EPS CM.

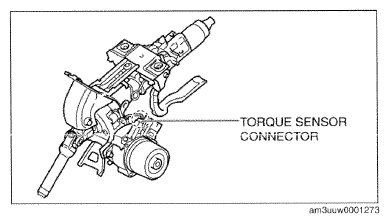

    Fig 1: Identifying Torque Sensor Connector
    G09783306Courtesy of MAZDA MOTORS CORP.
