Accelerator Pedal Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove in the order indicated in the table.

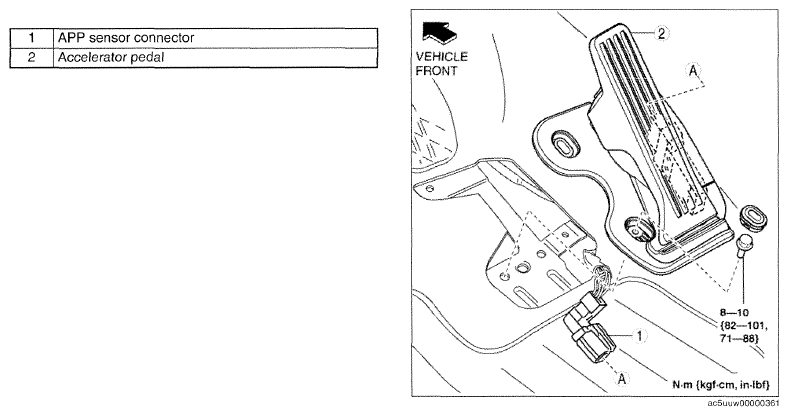

    Fig 1: Accelerator Pedal And APP Sensor Connector With Torque Specifications
    G09782642Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
