Push Button Start Connector End View

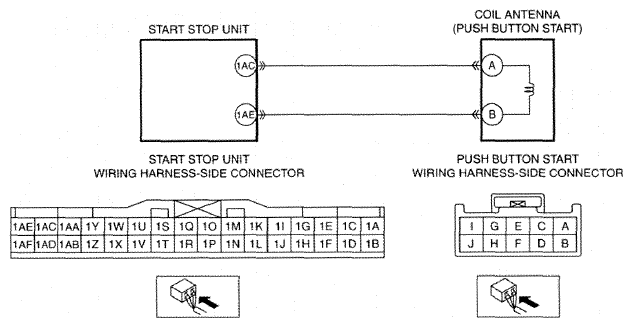

Fig 1: Push Button Start Connector End View
G09771771Courtesy of MAZDA MOTORS CORP.

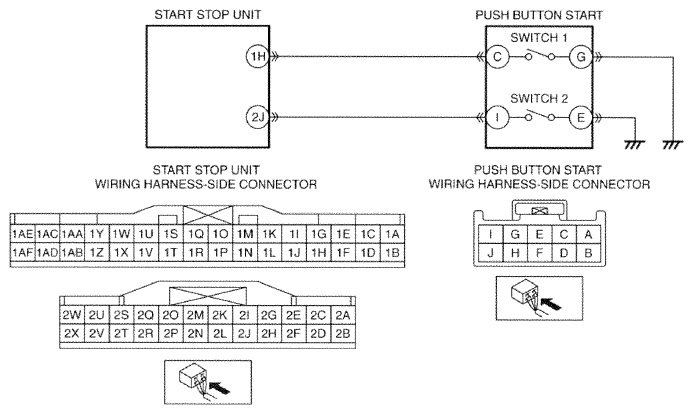

Fig 1: Push Button Start Connector End View
G09771852Courtesy of MAZDA MOTORS CORP.
