Home >> Mazda >> 2014 >> 3 Sport, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Driver-Side Air Bag Module Connector End View

Driver-Side Air Bag Module Connector End View

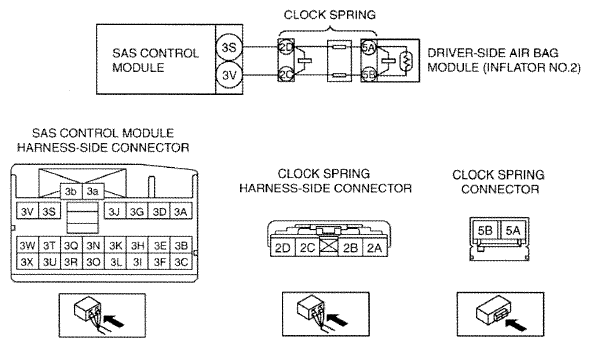

Fig 1: Driver-Side Air Bag Module Connector End View
G09783457Courtesy of MAZDA MOTORS CORP.
