3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Cruise Control System Connector End View
Cruise Control System Connector End View

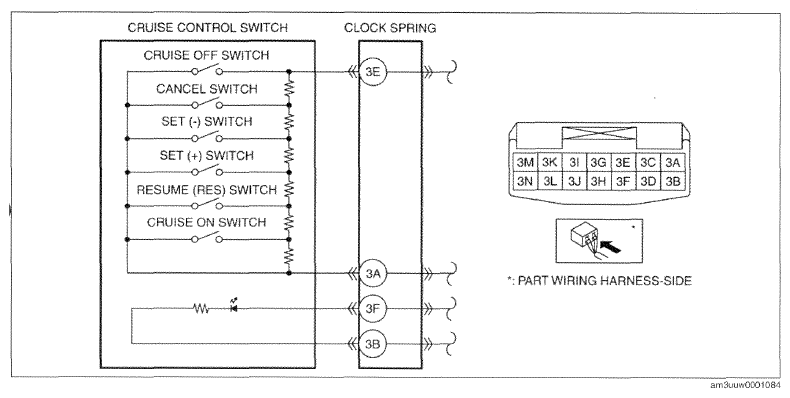

Fig 1: Cruise Control System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
