Locknut Removal Note

  1. Remove the locknut.
  2. Install a spare nut onto the drive shaft.
  3. Tap the nut with a copper hammer and separate the drive shaft from the axle.
  4. Separate the drive shaft from the wheel hub.

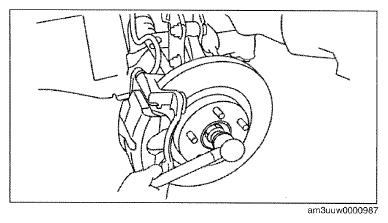

    Fig 1: Removing Locknut
    G09782931Courtesy of MAZDA MOTORS CORP.
