Vehicle Exterior

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
2. Trunk lid garnish (See TRUNK LID GARNISH REMOVAL/INSTALLATION .)
3. Trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION .)
Verify the continuity of trunk lid opener switch terminals A and C.
- If not as indicated in the table, replace the trunk lid opener switch.

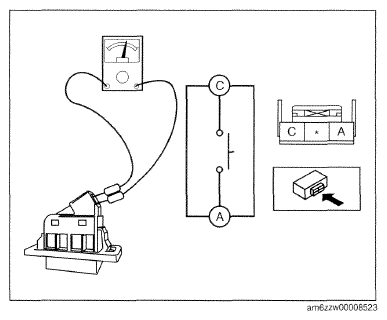

  Fig 1: Checking Continuity Of Trunk Lid Opener Switch Terminals A And C
  Courtesy of MAZDA MOTORS CORP.

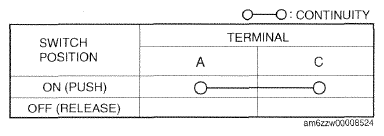

  Fig 2: Trunk Lid Opener Switch Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.
