Rear Door Lock Actuator Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    3. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage and connect the ground to the rear door lock actuator terminals as indicated in the table below and verify the operation condition.

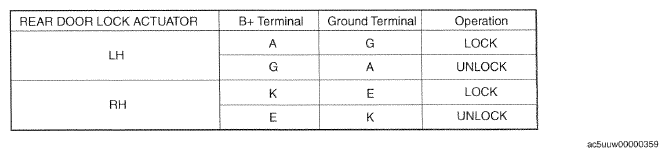

    Fig 1: Removing Door Latch And Lock Actuator
    G09635369Courtesy of MAZDA MOTORS CORP.

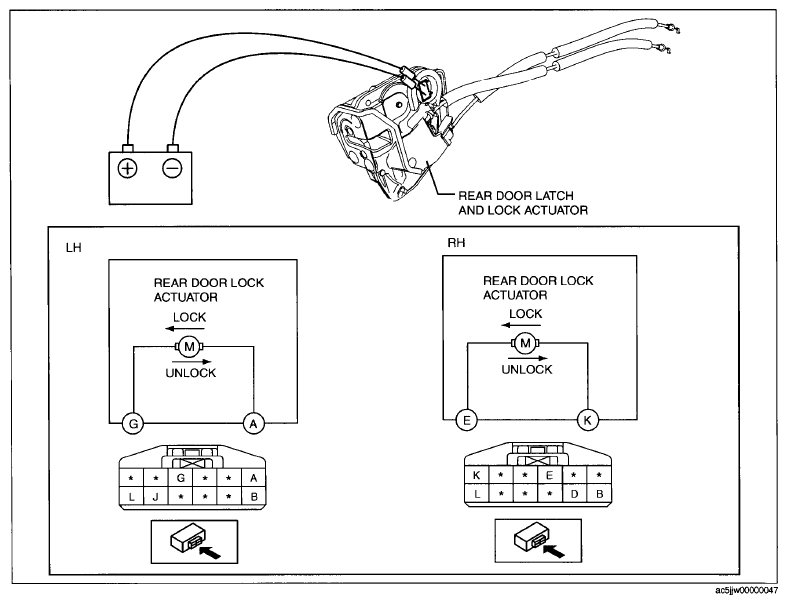

    Fig 2: Rear Door Lock Actuator Continuity Reference Chart
    G09077045Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the rear door latch and lock actuator.
