Fuel-Filler Lid Opener Cable Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
4. B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
5. Lap pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (With lap pre-tensioner seat belt.)
6. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
7. Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
8. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
9. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
10. Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
11. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)

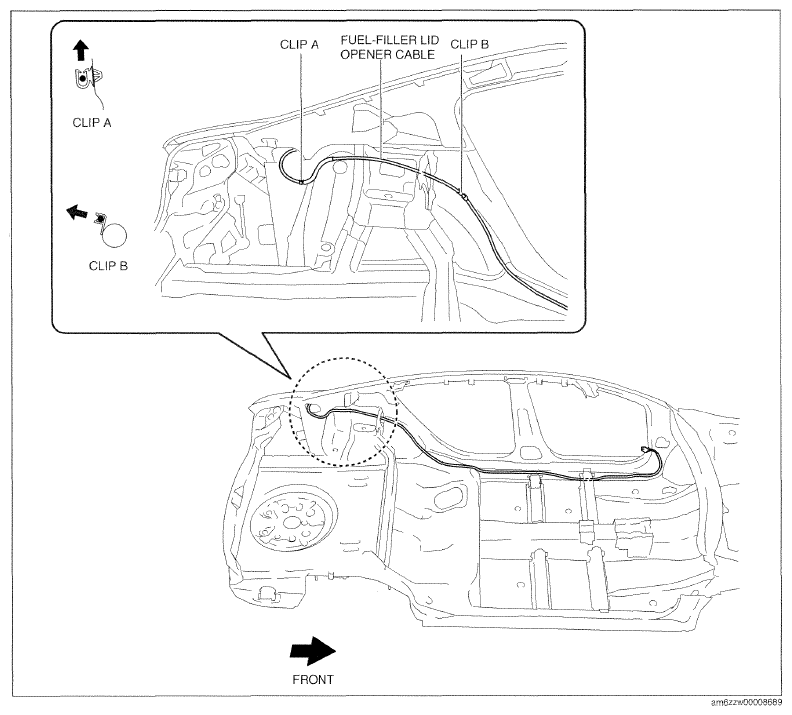

Remove the fuel-filler lid opener cable from clips A and B.

Fig 1: Removing Fuel-Filler Lid Opener Cable From Clips A And B
Courtesy of MAZDA MOTORS CORP.

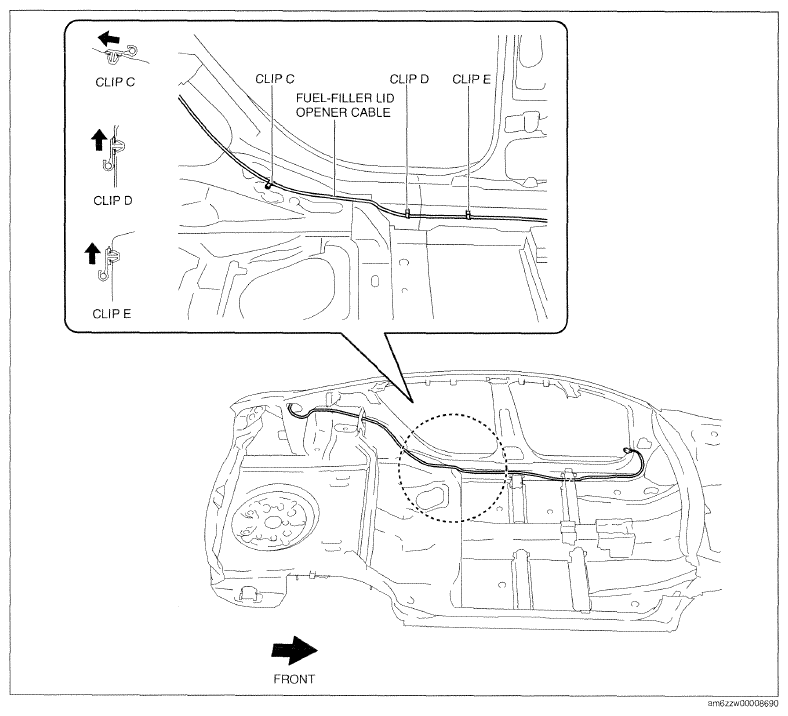

Remove the fuel-filler lid opener cable from clips C, D, and E.

Fig 2: Removing Fuel-Filler Lid Opener Cable From Clips C, D, And E
Courtesy of MAZDA MOTORS CORP.

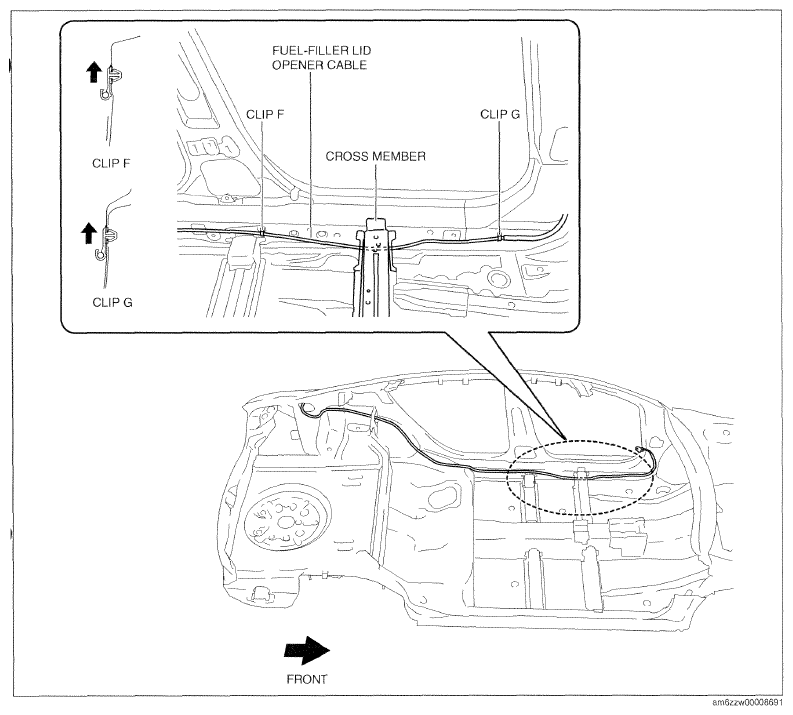

Remove the fuel-filler lid opener cable from clips F and G.

Fig 3: Removing Fuel-Filler Lid Opener Cable From Clips F And G
Courtesy of MAZDA MOTORS CORP.
Pull the fuel-filler lid opener cable from the crossmember.
Install in the reverse order of removal.
