Water Pump Component Removal Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the water inlet pipe stay bolt.
Place a container under the engine to collect the engine coolant remaining in the engine.

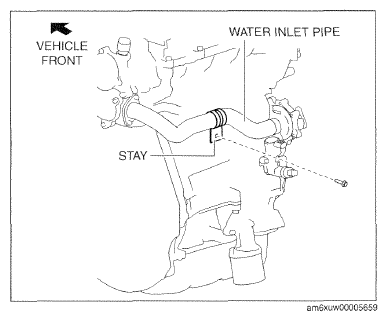

Fig 1: Identifying Water Inlet Pipe And Stay
Courtesy of MAZDA MOTORS CORP.
Slightly loosen the three water pump component bolts shown in the figure and collect the draining engine coolant into a container.
CAUTION:
- Do not remove the water pump component completely at this time because the remaining approx. 2 L {2 US qt, 2 Imp qt} or less of engine coolant flowing in the engine will drain out.
After the engine coolant stops draining, remove the water pump component.

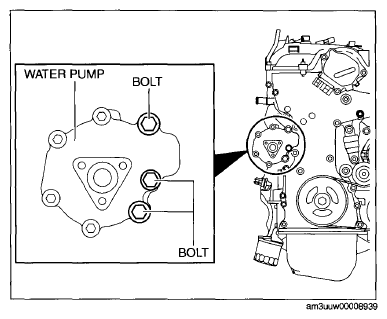

Fig 2: Identifying Water Pump And Bolts
Courtesy of MAZDA MOTORS CORP.
