Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ATX).)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See,!-- 05-10-19 -->CLUTCH UNIT REMOVAL/INSTALLATION (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION (ATX).)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

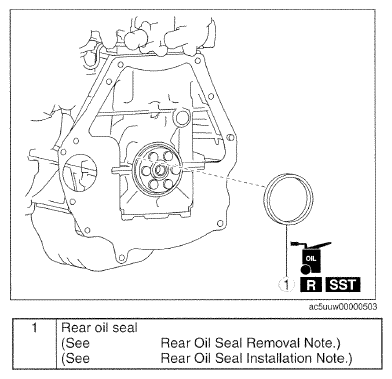

    Fig 1: Removing Rear Oil Seal
    G09785198Courtesy of MAZDA MOTORS CORP.
