Dashboard Under Cover Removal/Installation

  1. Detach hooks in the direction of the arrows in the order of (1), (2) shown in the figure.
    CAUTION:
    • If hooks and pins are removed forcefully, guide may be damaged. Carefully remove hooks and pins so as not to damage guide.

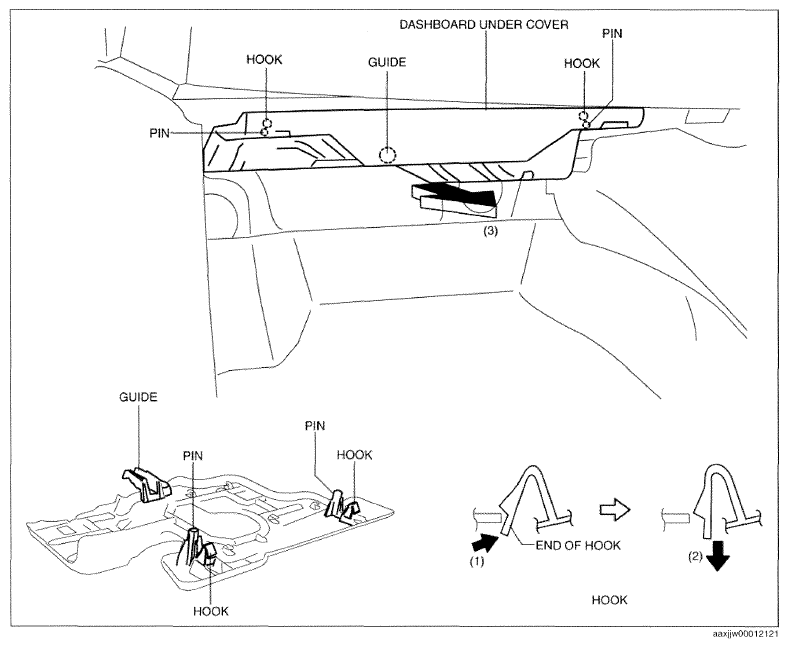

    Fig 1: Removing Dashboard Under Cover
    G09772284Courtesy of MAZDA MOTORS CORP.
  2. Remove the dashboard under cover in the direction of the arrow (3) shown in the figure while detaching the guide.
  3. Install in the reverse order of removal.
