Automatic Transaxle Fluid (ATF) Replacement

WARNING:

Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Disconnect the wiring harness from the front crossmember. (Vehicle with i-ELOOP)
Remove the dipstick securing bolt.

Fig 1: Locating Tab Of Front Crossmember
Courtesy of MAZDA MOTORS CORP.
Remove the dipstick.
Remove the drain plug and washer, and drain the ATF.
Install a new washer and drain plug.
Tightening torque

30-41 N.m {3.1-4.1 kgf.m, 23-30 ft.lbf}

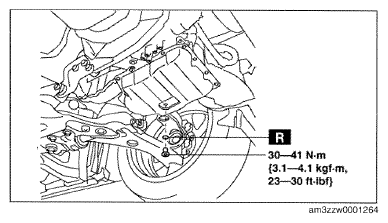

Fig 2: Identifying Dipstick And Bolts
Courtesy of MAZDA MOTORS CORP.
Add ATF from the dipstick installation hole.
NOTE:
- The ATF color is blue.
- Only use ATF FZ for the FW6A-EL.
ATF type

ATF FZ

Resupply amount (Reference)

ATF is drained from drain plug: 3.5-4.9 L {3.7-5.1 US qt, 3.1-4.3 Imp qt}
Adjust the ATF level, (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .)
Insert the dipstick and install the securing bolt.

Fig 3: Washer With Torque Specification
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Connect the wiring harness to the front crossmember. (Vehicle with i-ELOOP)
Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)

Fig 4: Locating Tab Of Front Crossmember
Courtesy of MAZDA MOTORS CORP.
