Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note

Install the front stabilizer bushing to the front stabilizer with its slit positioned rearward of the vehicle.
Install the front stabilizer bracket to the front stabilizer bushing by hand using the following procedure.
If the front stabilizer bracket cannot be installed by hand, install it using a vise.

Fig 1: Identifying Front Stabilizer Slit
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the front stabilizer bracket is installed using a vise, It could be deformed.
- Set a cylindrically-shaped object as shown in the figure so that pressure is applied to the front stabilizer bracket flange, and install the front stabilizer bracket to the front stabilizer bushing.

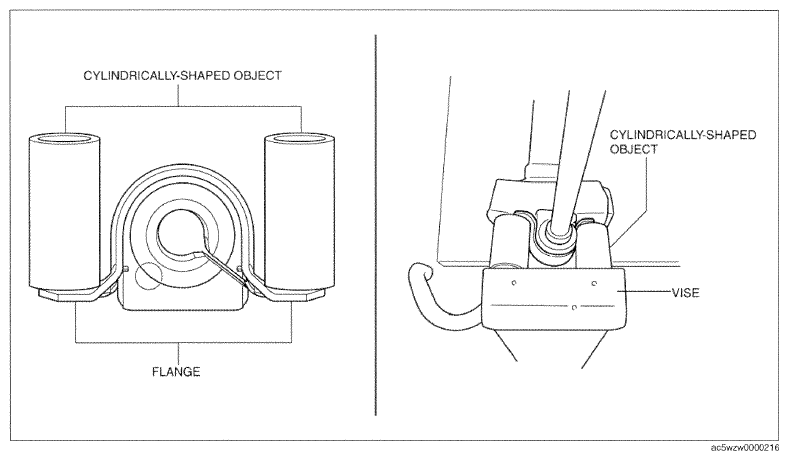

Fig 2: Installing Cylindrically-Shaped Object
Courtesy of MAZDA MOTORS CORP.
During front stabilizer bracket installation, keep the deviation in the positions of the front stabilizer bracket and the front stabilizer bushing within the range shown in the figure.
W ¹ : 0.5 mm {0.02 in} max.

W ² : 2 mm {0.08 in} max.

Fig 3: Identifying Front Stabilizer Bushing Range
Courtesy of MAZDA MOTORS CORP.
After installing the front stabilizer bracket, verify that the positions of the front stabilizer bracket and the front stabilizer bushing are within the range shown in the figure.
H ¹ : 13 mm {0.51 in} max.

Fig 4: Identifying Front Stabilizer Bushing Height
Courtesy of MAZDA MOTORS CORP.
After installing the front stabilizer bracket, verify that the right and left-side positions of the front stabilizer bracket are within the range shown in the figure.
H ² : 6 mm {0.2 in} max.

Fig 5: Identifying Front Stabilizer Bushing Range
Courtesy of MAZDA MOTORS CORP.
Place the front stabilizer component on a level workbench, and verify that it is within the range shown in the figure.
H ³ : 50.4-80.4 mm {1.99-3.16 in}

Fig 6: Identifying Front Stabilizer Component Level
Courtesy of MAZDA MOTORS CORP.
