Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING:
  • Removing/installing the front shock absorber and coil spring is dangerous. The front shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.
  1. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

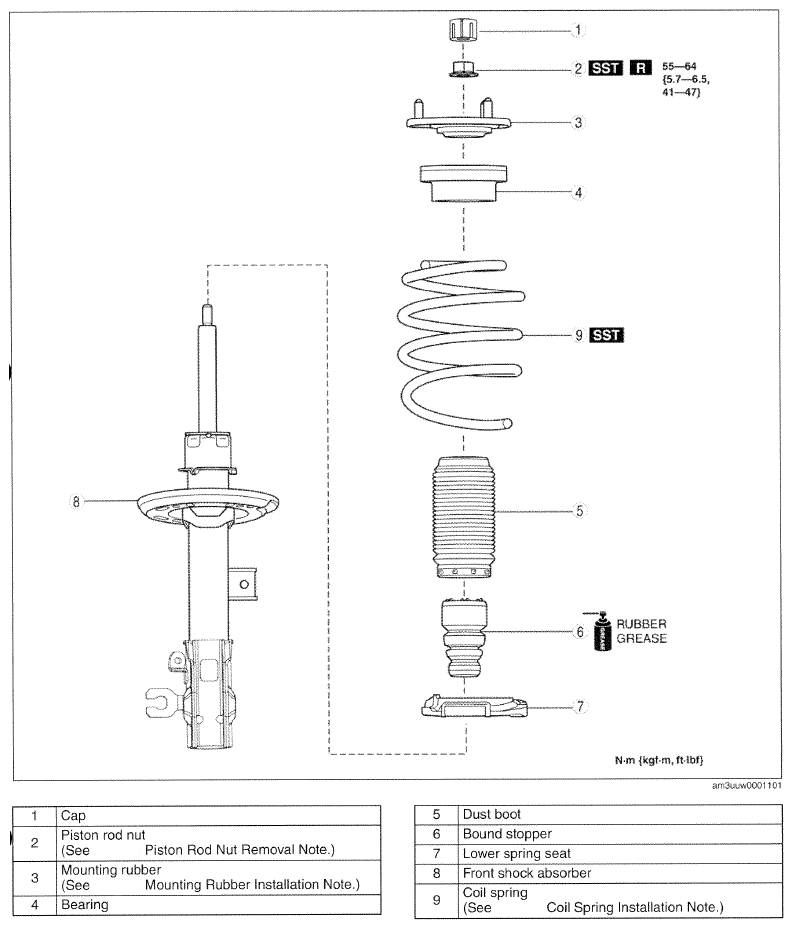

    Fig 1: Front Suspension Grease Application Area With Torque Specifications
    G09770928Courtesy of MAZDA MOTORS CORP.
