Passenger-side (With Buckle Switch)

  1. Disconnect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Detach the clip.

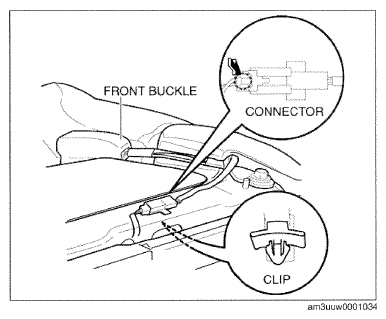

    Fig 1: Removing Front Seat Clip
    G09771733Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the bolt.
  6. Remove the front buckle.
  7. Install in the reverse order of removal.

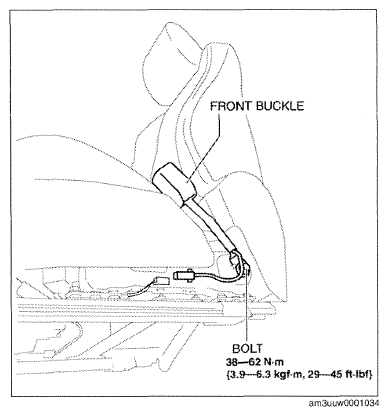

    Fig 2: Front Buckle And Mounting Bolt With Torque Specifications
    G09771734Courtesy of MAZDA MOTORS CORP.
