Charging Preparation

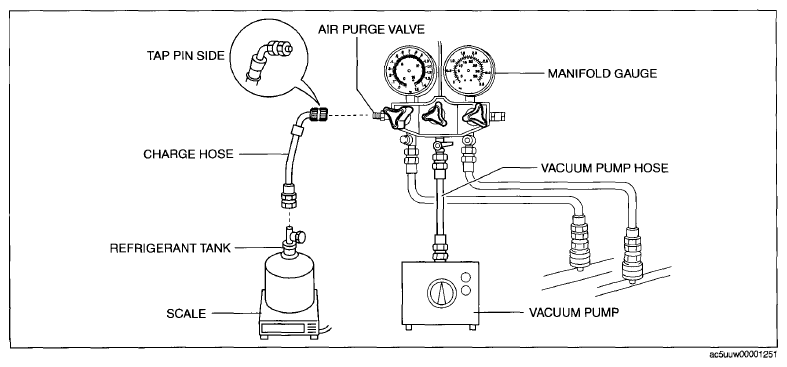

- Install the manifold gauge set.
- Connect the tap pin side of the charging hose to the air purge valve of the manifold gauge.
- Connect the vacuum pump hose to the center joint of the manifold gauge.
- Connect the vacuum pump hose to the vacuum pump.
- Connect the charging hose to the refrigerant tank.
- Place the refrigerant tank on the scale.
Regular amount of refrigerant (approx. quantity) 465-515 g {16.5-18.1 oz}
