Front Heat Duct Removal/Installation: Passenger-side

  1. Remove the following parts:
    1. Dashboard undercover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Side wall (passenger-side) (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrow.

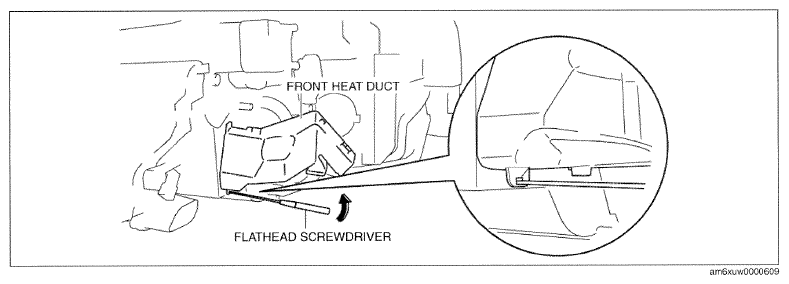

    Fig 1: Inserting Flathead Screwdriver In Front Heat Duct
    G09771358Courtesy of MAZDA MOTORS CORP.
  3. Detach the tab while lifting up the front heat duct in the direction of the arrow.

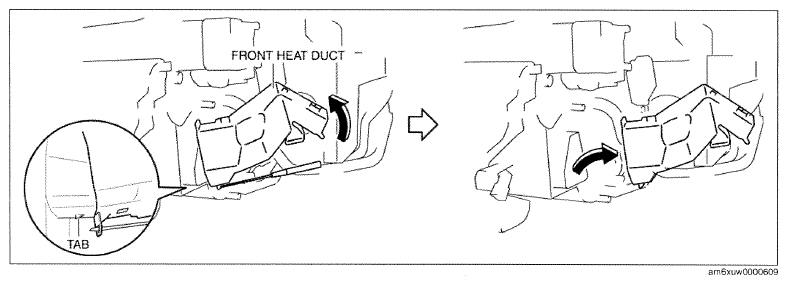

    Fig 2: Detaching Tab While Lifting Up Front Heat Duct
    G09771359Courtesy of MAZDA MOTORS CORP.
  4. Remove the front heat duct.
  5. Install in the reverse order of removal.
