Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Rotate the steering wheel in the direction of the arrow shown in the figure to the angle where the service hole is visible.

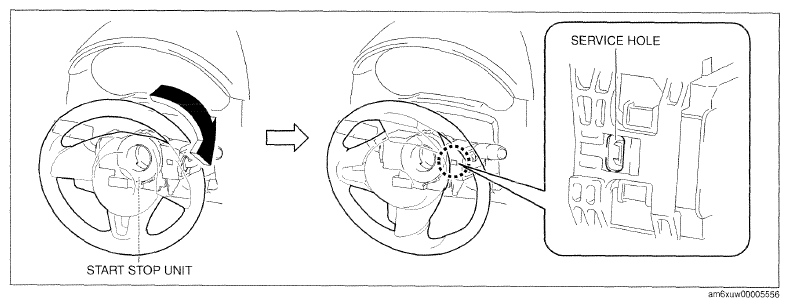

    Fig 1: Removing Wiper And Washer Switch
    G09788291Courtesy of MAZDA MOTORS CORP.
  4. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
    G09788292Courtesy of MAZDA MOTORS CORP.
  5. While pressing the wiper and washer switch tab in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull out the wiper and washer switch in the direction of the arrow (2) shown in the figure to detach the wiper and washer switch tab and the start stop unit.

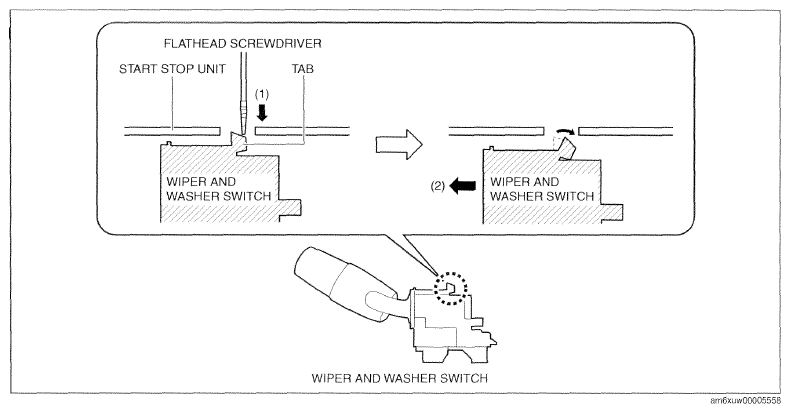

    Fig 3: Pressing Wiper And Washer Switch Tab
    G09788293Courtesy of MAZDA MOTORS CORP.
  6. Remove the wiper and washer switch from the start stop unit.
  7. Install in the reverse order of removal.
    Fig 4: Identifying Washer Switch And Start Stop Unit
    G09788294Courtesy of MAZDA MOTORS CORP.
