Trunk Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
While pressing the lens in the direction of the arrows (1) shown in the figure, move the lens in the direction of the arrow (2) shown in the figure to detach the lens tabs from the rear package trim.

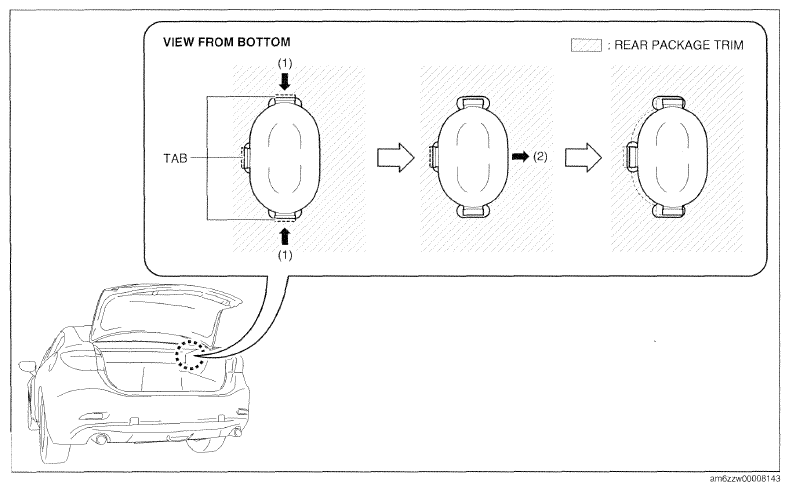

Fig 1: Removing Trunk Compartment Light Bulb
Courtesy of MAZDA MOTORS CORP.
Remove the lens.
Remove the trunk compartment light bulb.
Install in the reverse order of removal.

Fig 2: Identifying Trunk Compartment Light Bulb And Lens
Courtesy of MAZDA MOTORS CORP.
