Side Turn Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Remove the outer mirror garnish (upper side). (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
Remove the screws.

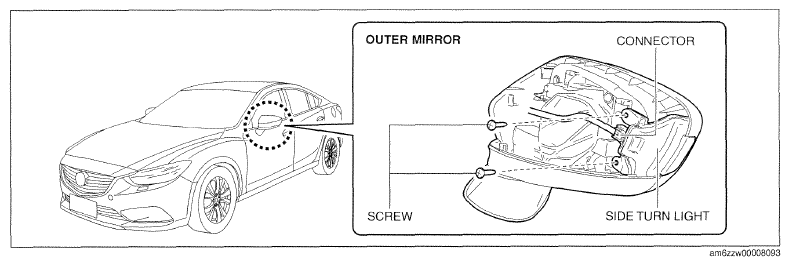

Fig 1: Identifying Side Turn Light And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the side turn light.
Disconnect the connector.
Install in the reverse order of removal.
