Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Partially peel back the mudguard and front under cover No. 1. (See MUDGUARD REMOVAL/INSTALLATION .) (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove screws A.

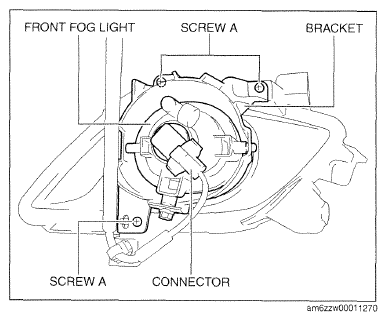

    Fig 1: Identifying Front Fog Light Components
    G09788117Courtesy of MAZDA MOTORS CORP.
  5. Pull out the pins from the bracket to remove the front fog light and bracket.
    Fig 2: Identifying Front Fog Light And Bracket Pins
    G09788118Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolt and screw B.
  7. Remove the front fog light.
  8. Install in the reverse order of removal.
  9. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)

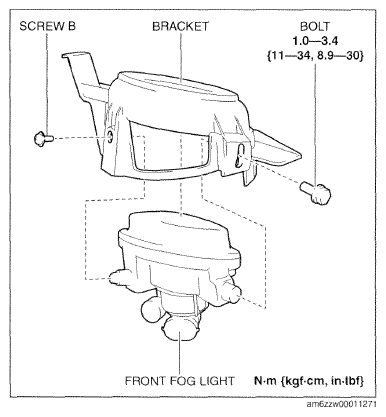

    Fig 3: Front Fog Light Cover And Mounting Screw With Torque Specification
    G09788119Courtesy of MAZDA MOTORS CORP.
