Trunk Lid Trim Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  2. Remove the fasteners, then remove the trunk lid trim.

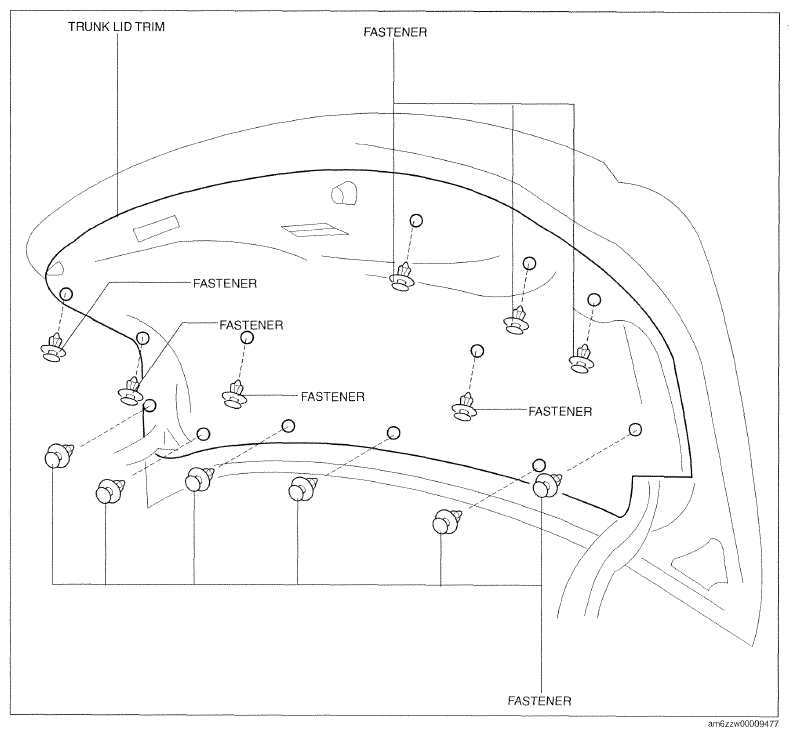

    Fig 1: Trunk Lid Trim Fastener
    G09788060Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
