Cluster Switch Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove bolt A.

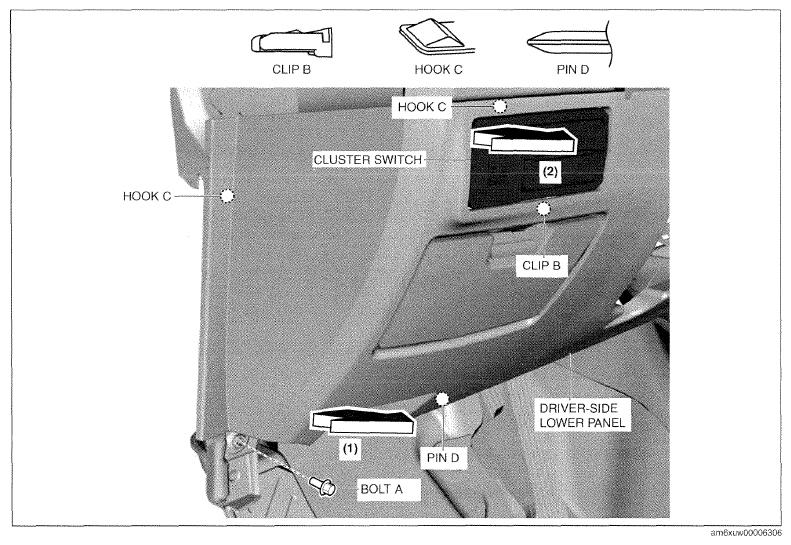

    Fig 1: Removing Cluster Switch
    G09787966Courtesy of MAZDA MOTORS CORP.
  5. Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching clip B, hooks C and pin D.
  6. Set the driver-side lower panel aside.
  7. Remove hooks E in the direction of the arrow in the order of (3), (4) shown in the figure.

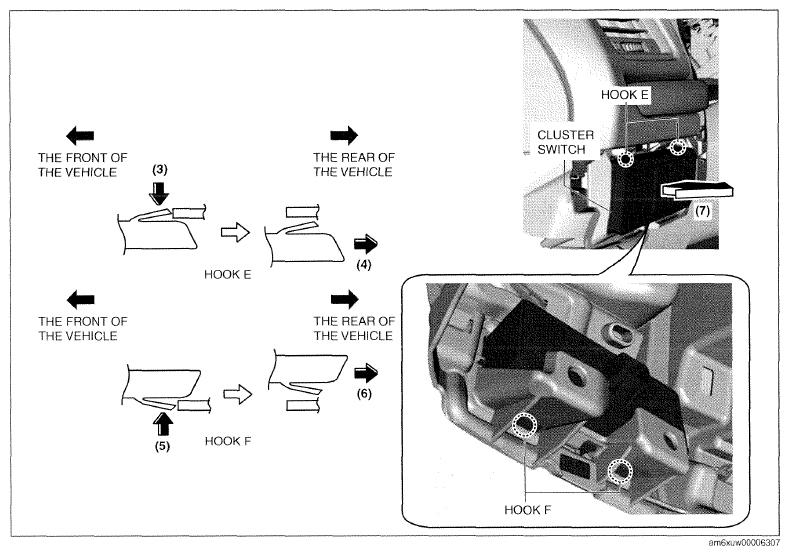

    Fig 2: Hooks Removing Sequence
    G09787967Courtesy of MAZDA MOTORS CORP.
  8. Remove hooks F in the direction of the arrow in the order of (5), (6) shown in the figure.
  9. Remove the cluster switch in the direction of the arrow (7) shown in the figure.
  10. Disconnect the cluster switch connector.
  11. Install in the reverse order of removal.
