Side Air Bag Module

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the front seat connector.
  2. Connect the SST (Adapter harness)  to the front seat connector as shown in the figure.

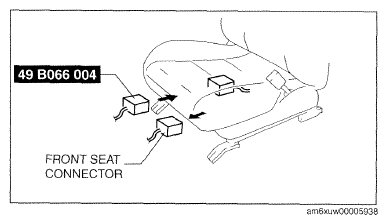

    Fig 1: Disconnecting Front Seat Connector
    G09787165Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
  4. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.

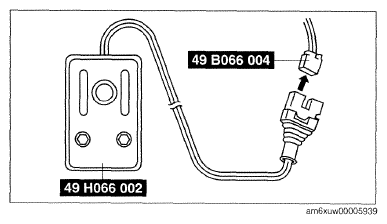

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G09787166Courtesy of MAZDA MOTORS CORP.
  7. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the side air bag module.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  8. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .

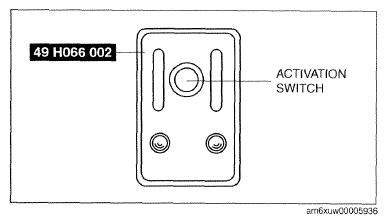

    Fig 3: Pressing Activation Switch On SST (Deployment Tool) To Operate (Deploy) Side Air Bag Module
    G09787167Courtesy of MAZDA MOTORS CORP.
