Back-Up Light Switch Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

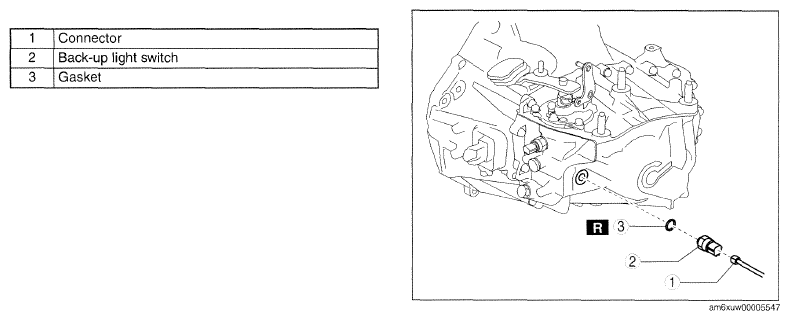

    Fig 1: Identifying Back Up Light Switch, Connector And Gasket
    G09785974Courtesy of MAZDA MOTORS CORP.
  4. Install in the order indicated in the table.

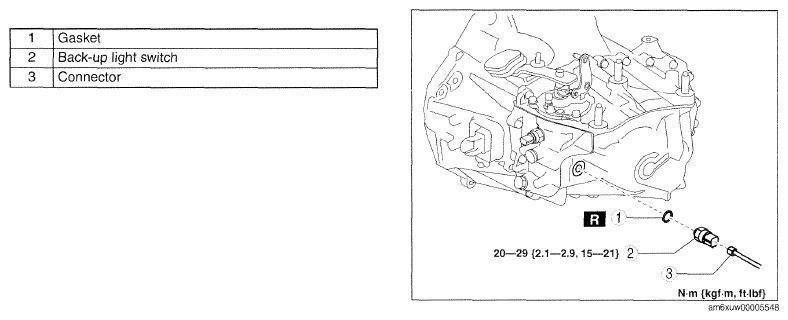

    Fig 2: Back Up Light Switch, Connector And Gasket With Torque Specification
    G09785975Courtesy of MAZDA MOTORS CORP.
  5. Install the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
