Exhaust System Insulator Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

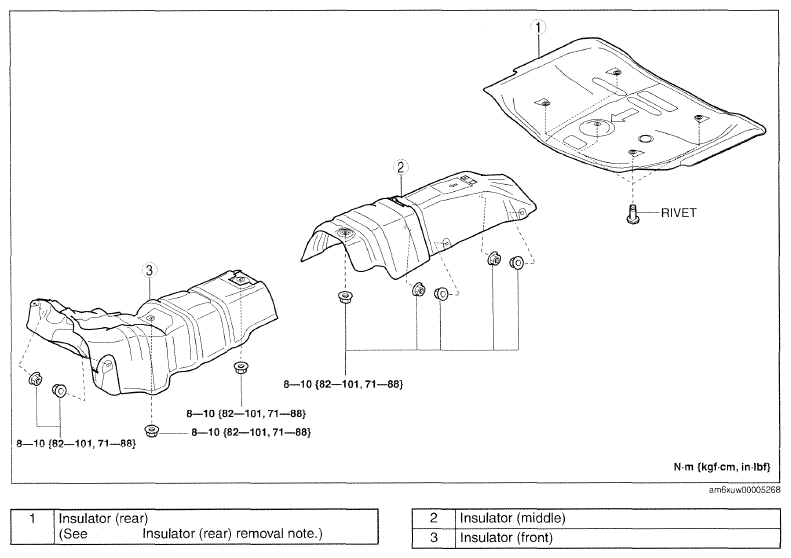

    Fig 1: Exhaust System Insulator Removal/Installation Components With Torque Specifications
    G09786784Courtesy of MAZDA MOTORS CORP.
