On-Board Diagnostic - Engine Controls (Introduction & DTC Index)
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

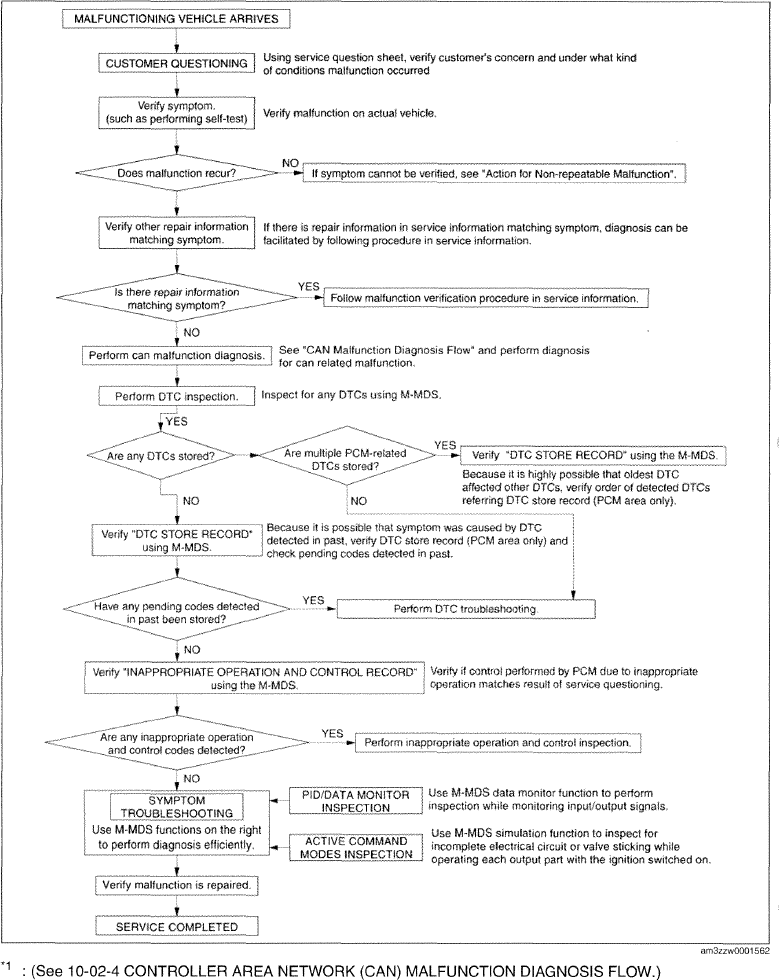

Fig 1: Troubleshooting Chart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
