Evaporative Hose Installation Note

  1. Install the evaporative hose as shown in the figure.

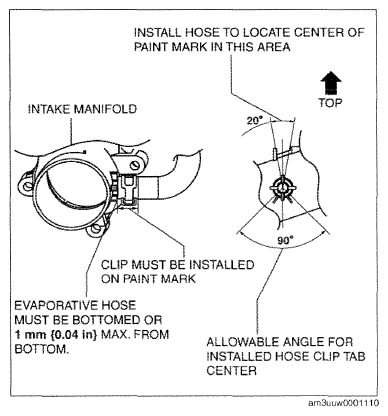

    Fig 1: Identifying Evaporative Hose Installation Position
    G09782630Courtesy of MAZDA MOTORS CORP.
