Exhaust Manifold Insulator Installation Note
- Temporarily tighten the exhaust manifold insulator.

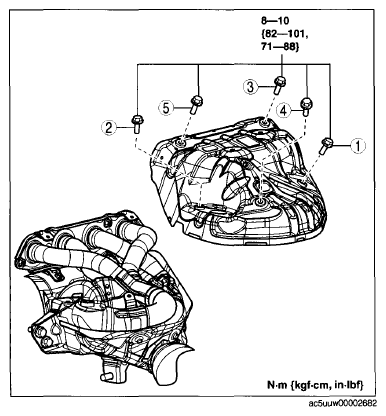

- Tighten the exhaust manifold insulator in the order shown in the figure.
Exhaust manifold insulator tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
