Cooling System Location Index

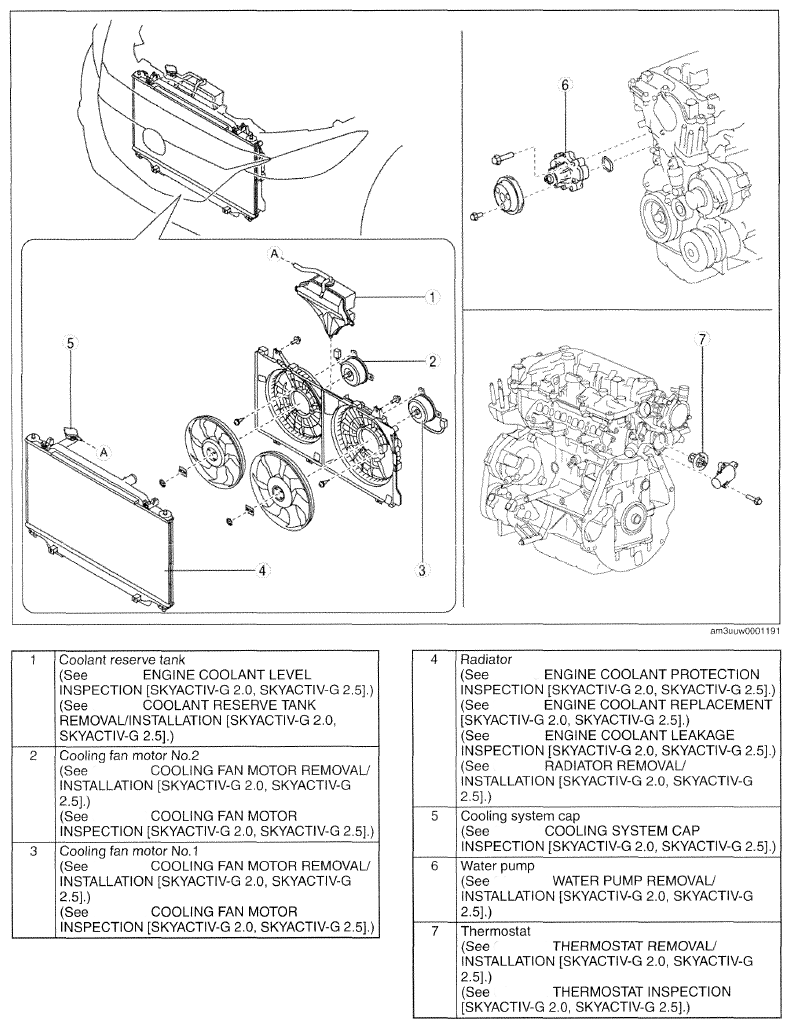

Fig 1: Identifying Cooling System Components (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
