LED Illumination Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the LDWS switch. (See LDWS SWITCH REMOVAL/INSTALLATION .)

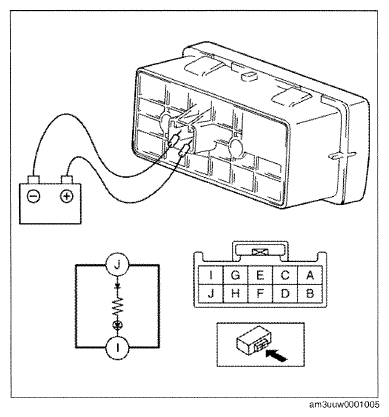

- Apply battery positive voltage to LDWS switch terminal J, and connect terminal I to ground.
- Verify that the LED illuminates.
- If there is any malfunction, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
